Cornelius F. Kiernan Judicial Center

Commonwealth of Massachusetts
Lowell, Massachusetts

Located within the Lowell National Historic Park, this new Justice Center forms the cornerstone of Lowell’s Hamilton Canal District development master plan. The project was the largest of three pilot studies for the Commonwealth of Massachusetts’ Division of Capital Asset Management and Maintenance (DCAMM)s ZNE initiatives. The courthouse is designed to use 40% the energy of a typical facility. A tight building envelope, coupled with glazing that maximizes daylighting, chilled beams and displacement ventilation, and photo-voltaic panels; are some of the many sustainable features. The Cornelius F. Kiernan Judicial Center is LEED Platinum certified and is the first courthouse in the Commonwealth of Massachusetts and first state courthouse in the country to receive this certification!

‍

Head to our article here to watch drone footage of the new Cornelius F. Kiernan Judicial Center by Reuben Pelham.

‍

(Photo credit: Anton Grassl Architectural Photography)

Size
Scope
New Construction
Program
Courtrooms, Judicial Suites, Clerk + Probation Areas, Detainee Areas, Registry of Deeds and Public Lobbies
Sustainability
LEED Platinum
Awards
ACEC Silver Award Honoring Outstanding Professional Design Excellence for ZNE Study
Green Building Showcase, National Grid/Eversource Energy Optimization Award
2021 BSA Accessible Design Award
2023 Justice Facilities Review Award
In the news
Lowell Justice Center Opens to the Public
A Courthouse Worth Judging
Lowell Justice Center Recognized in Correctional News
Local Videographer Captures Birds-Eye View of Lowell Justice Center
Finegold Alexander’s Cornelius R. Kiernan Justice Center Wins AIA Academy of Architecture for Justice Award

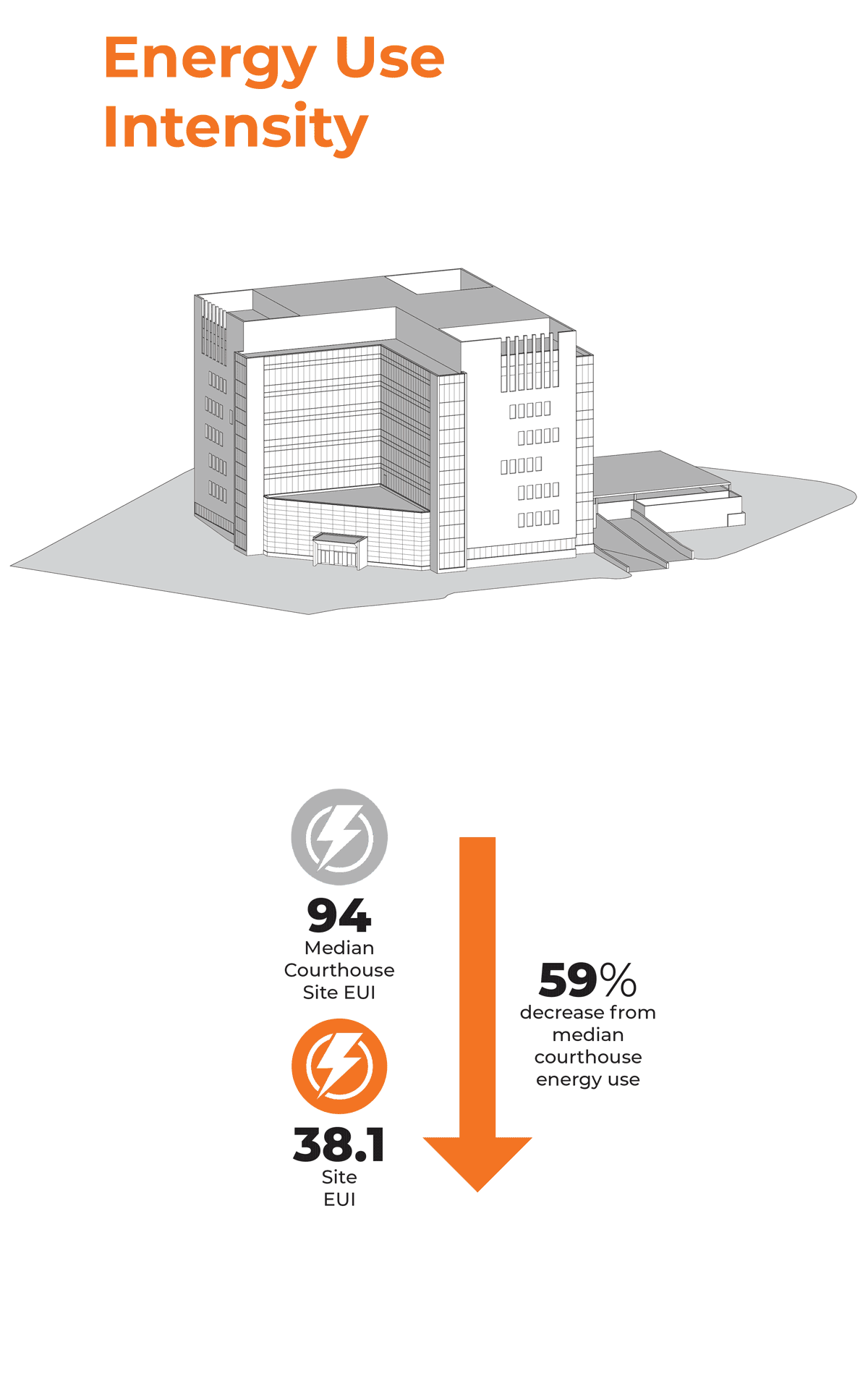

Project EUI
38.1 kBtu/SF
Side view of the Lowell Justice Center, featuring a non-symmetrical window pattern on stone.
View of the Lowell Justice Center's entry from the left, with blue skies.
View of the Lowell Justice Center in the background, with traditional Lowell brick mill buildings in the foreground on both sides of the canal.
Frontal view of the Lowell Justice Center, featuring red, orange, yellow and green figures on the entry artwork.
No items found.
“Once opening day goes by and the full season starts it’s going to be cool. I think people are going to be very happy about being here.”
Michael Sullivan, Middlesex County Clerk of Courts, in the Lowell Sun Times

‍

Inviting lobby of the Lowell Justice Center defined by tube-like lights, colorful art on the glass facade, and wooden accents.,
Two people sitting on benches in the corridor overlooking Lowell Justice Center's light-filled and warm lobby.
No items found.

The following elements helped Cornelius F. Kiernan Judicial Center achieve LEED Platinum:

o  Building massing and orientation minimizes the effects of solar heat gain and maximizes energy savings

o  HVAC system includes energy recovery wheels, chilled beams and displacement air systems which contribute to an estimated overall energy use reduction of 55-60% compared to a typical building.

o  Photo-voltaic panels on the roof and above the Judges’ parking offset energy use by 19%

o   Building envelope utilizes rainscreen design and maximizes R and U values for insulation and fenestration systems available at the time of design and construction

o  Landscape includes native plant species and a pollutant filtering rain garden on a redeveloped brownfield site

‍

Frontal view of large courtroom, with tall, floor-to-ceiling windows on the left, and warm wood furniture.

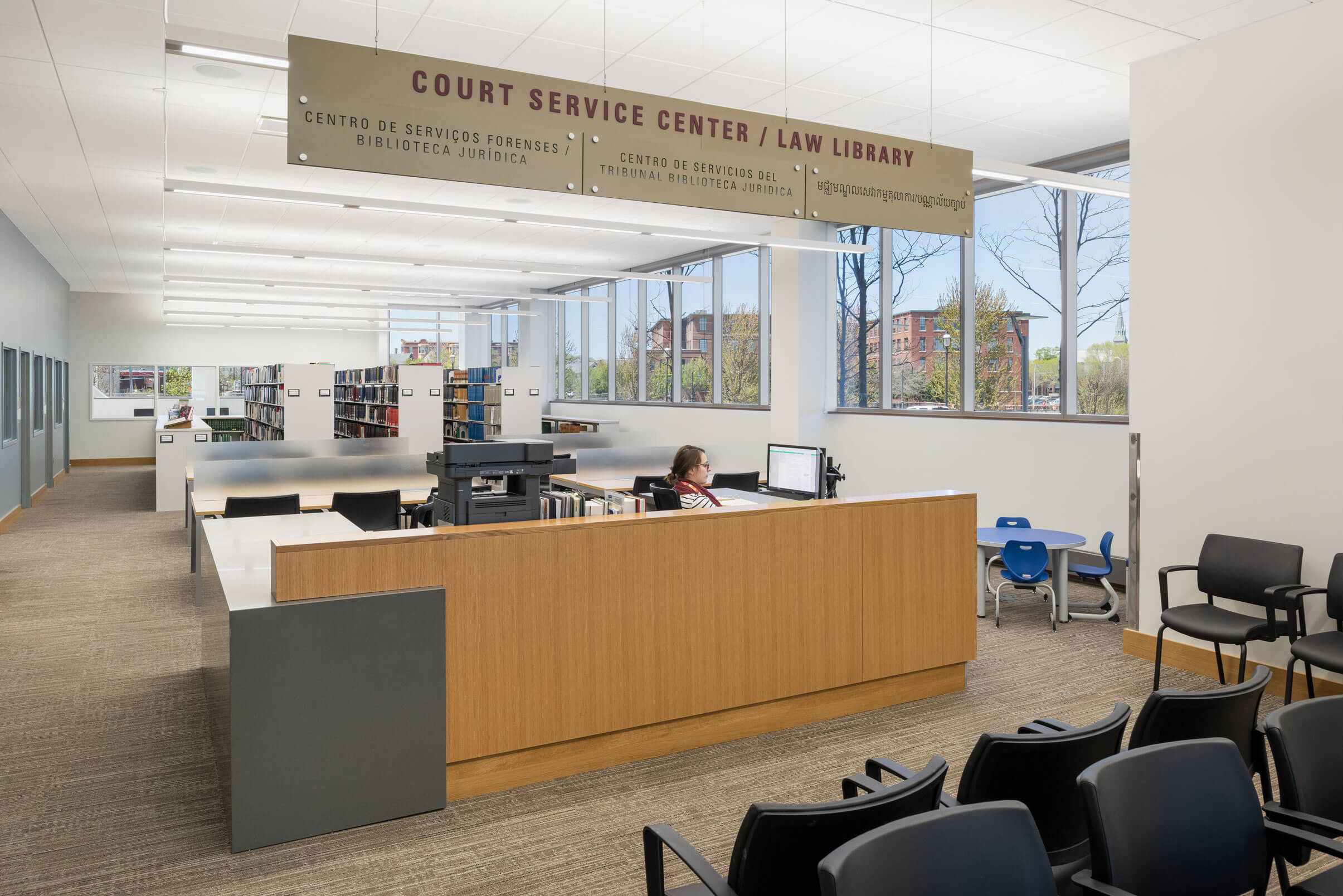

Lowell Justice Center, Court Service Center and Law Library, with a wooden service desk underneath the sign, and and brick buildings visible through the windows.
Courtroom number 10 of the Lowell Justice Center with wooden benches in the foreground and a glass staircase in the background.
Corridor outside of courtrooms, with wooden benches and an expansive view of Lowell from the floor-to-ceiling windows.
Back of of the Lowell Justice Center featuring columns of glass and stone, reflecting off the water in the canal in the foreground.
Spacious wooden office desks framed by a corner of floor-to-ceiling glass windows with a view onto the city of Lowell.
No items found.
“It’s beautiful!”
Ken Davis, Chief Court Officer, in the Lowell Sun Times‍
